Stitch count, explained: what 5,000 stitches looks like on a cap
The number on every product page is the one the machine actually cares about. Here is how to read it, with a reference ladder from initials to full-front fills.
Every cap on this site lists a stitch count next to the thread colors. It is an odd number to put on a product page, and we put it there on purpose. It is the one number the embroidery machine cares about, and once you know how to read it, it tells you how a cap will feel and how long it took to make.
What one stitch is

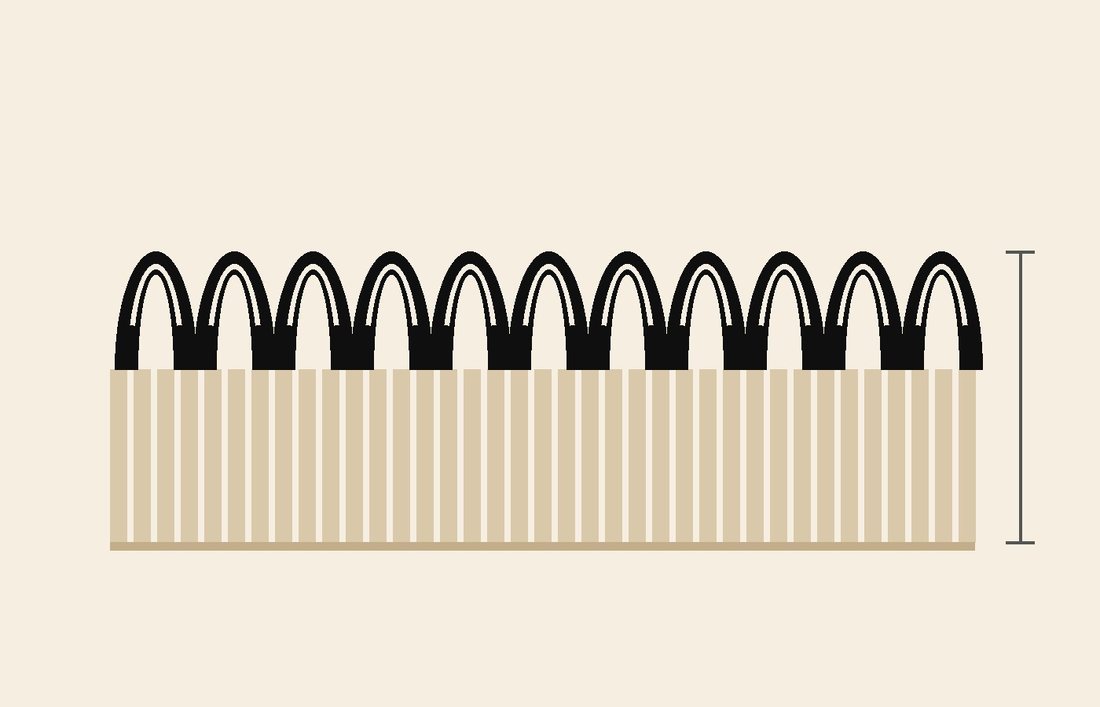

One stitch is one needle penetration: the needle goes down through the fabric, the thread locks with the bobbin thread underneath, the needle comes up, and the frame moves to the next point. A satin-stitched letter about half an inch tall is roughly 200 to 400 of these. A stitch count of 5,000 means the needle went in and out of the cap five thousand times.
Why the number exists
Machine time. An embroidery machine runs at a fairly fixed speed, so stitch count is the closest thing the trade has to a clock. It is also why the industry quotes embroidery per thousand stitches. On our product pages it is there for the opposite reason: not to bill you, but so you can compare one design with another and know what you are getting.
A reference ladder
Numbers without something to compare them to are useless, so here is a rough ladder for cap fronts. Real designs vary with density and fabric, but these ranges are typical.
| Stitches | What it usually is | How it feels |
|---|---|---|
| 1,000–2,000 | Initials, a short name in a small font, a thin one-line icon | You barely notice it under your thumb |
| 2,500–4,000 | A one- or two-color line drawing about two inches wide, or a name in a bold font | Clear texture; the cap stays soft |
| 4,000–7,000 | A two- or three-color design with some filled areas, two to three inches wide | Solid and present, still flexible. Most of our caps live here. |
| 7,000–12,000 | Dense fills, larger logos, or 3D puff lettering | The front panel firms up noticeably |
| 12,000+ | Full-coverage front panels, photographic-style fills | Stiff and heavy; the cap wears differently |
Most of the student designs we stitch land between about 3,000 and 7,000 stitches in one to three colors. That is not an accident. Line art in a few solid colors is what thread does best, and it keeps the cap wearable.
More is not better
A higher count does not mean higher quality. It means more thread. A design digitized carelessly, with the density set too high, can carry twice the stitches of the same design done well and look worse: the surface bunches, the fabric puckers, and the front panel turns into a plate. Good digitizing uses the fewest stitches that fully cover the shape and no more. If you are comparing two caps and one has a much higher count for a similar-looking design, the lower one was probably digitized better.
What stitch count does to time
Machines are rated at over a thousand stitches per minute, but caps are stitched slower than flat items because of the curve, and every color change and thread trim adds a pause. A 5,000-stitch, three-color design is realistically eight to ten minutes on the machine. That is the fast part. Hooping the cap, checking the first piece, and the three photos we take before shipping take longer than the stitching does.
Why the same design counts differently on different caps
Stitch count belongs to the stitch file, and the stitch file is made for a specific fabric. A design digitized for a stiff twill trucker front gets redone for a knit beanie with more underlay and different compensation, and the count goes up. Same drawing, different file. This is also why we list the count per product, not per design.
Reading the product page
On any cap, the specs block shows stitches and thread colors together. Read them as a pair. A 6,000-stitch, one-color design is a large simple shape. A 6,000-stitch, three-color design is smaller and more detailed. A 3,500-stitch, one-color design is a light line drawing that will feel almost flat. None of these is better; they are different caps. If you want to see how the file gets made in the first place, read What is embroidery digitizing?
Questions
Does a higher stitch count mean better quality?
No. It means more thread and more machine time. Quality comes from how the design was digitized, not from how many stitches it has. Over-dense designs often have high counts and look worse.
How many stitches is a typical cap logo?
A front-panel logo two to three inches wide with a couple of colors is usually 4,000 to 8,000 stitches. Small text-only designs can be under 2,000. Full-front fills run well past 12,000.
Does stitch count affect the price?
In the trade, yes: embroidery is quoted per thousand stitches. On our caps the price is set per product, and the count is shown so you know what you are getting, not to calculate a bill.
How long does a 5,000-stitch design take to embroider?
About eight to ten minutes of machine time on a cap, plus hooping, color changes, and inspection. The digitizing that happened before the first cap took far longer.
